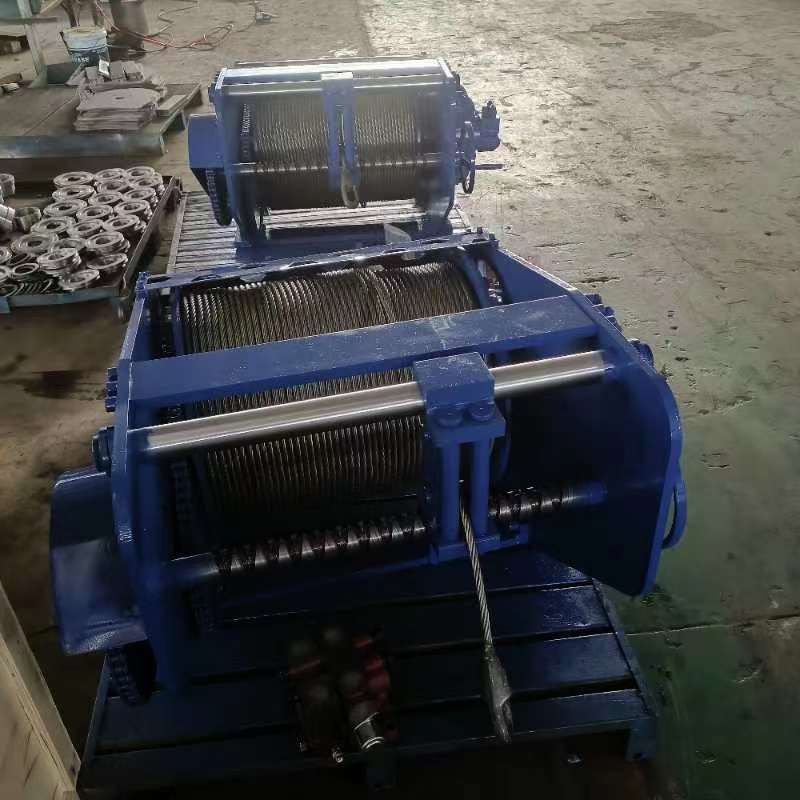

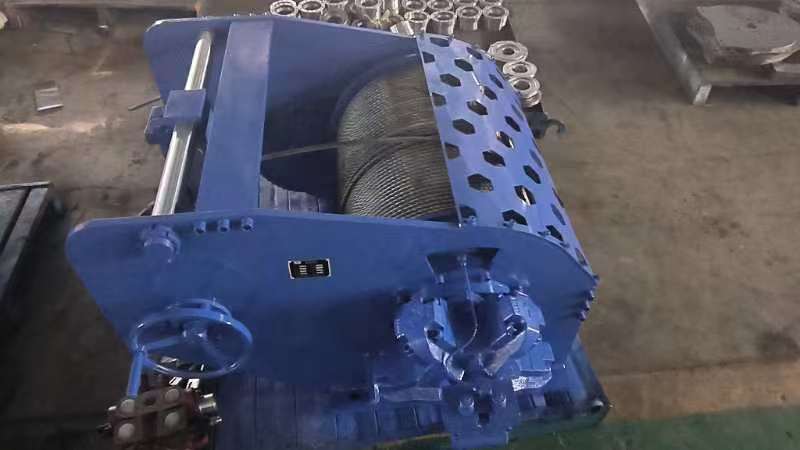

Hydraulic winch: It is widely used in extreme off-road, fire fighting and road rescue, industrial and commercial towing with high working conditions.
The difference with other winches is that One is the hydraulic motor, the second is the gear gear ring, the gear module is large enough to withstand greater impact.
Technical Specification :
Model: YS6.0
Rated Pull Load: 6 ton @ 1st layer;
Working Speed: 0-40 m/min;
Drum Capacity: 450m (Total 8 layers);
Rope diameter:Crane max M35K Compacted Non Rotating Galvanised Ø12, 1960 N/mm2 RHLL, MBL 133 kN, 450 meters Included.
Max. Working Pressure:21 Mpa; Working Flow:100 L/min;
Brake Assembly:Muti Disc Negative Braker; Motor data :,750cc piston type ,6-750 model, Levelwind included.
Safety guard included; Manual control valve included; Dead weight: 500kg;
Overall Dimension (L*W*H): 1027MM*630MM*570MM
