Working Air Pressure (MPa) : 0.6-0.8
Line Pull Capacity @ First Layer (KN): 10-100
Working Speed (m/min): 0-20
Rated Power of Air Motor (KW): optional
Air Consumption (L/S): optional
Air Inlet Diameter (inch): optional
Brake Type: Hand Band Brake+Auto Band Brake

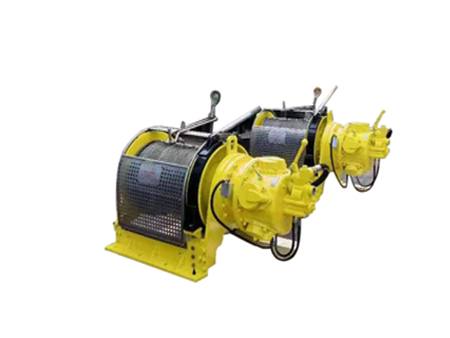

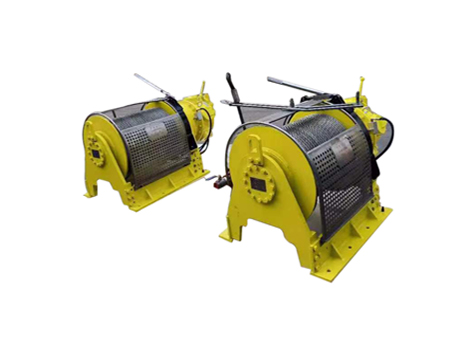

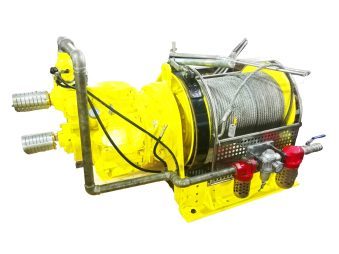

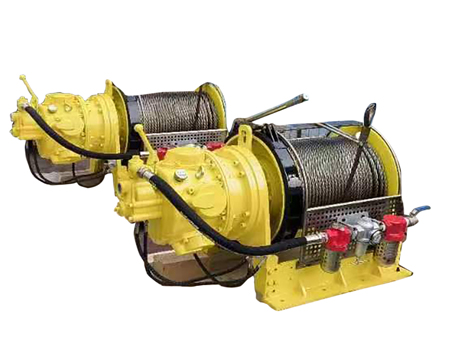

The Pneumatic Air Winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500; Not be the hoisting machines. The main components of Air Winch: deceleration device, main roll, Vice reel, control devices, wire guiding device and motor.
These parts were installed inside and outside the shell, the shell is a good steel parts, both to protect the supporting role, but also to bear all the load. It is connected on the basis of two slide bolt. Binoculars winch a master reel (mounted on the right, ie, close to the motor side), a secondary reel (mounted on the left).
A master reel (mounted in the middle) in the three-drum winch, two vice reel (mounted on the left and right), three drum winch can be mounted two main reel (mounted on the right and middle), a vice volume cylinder (mounted on the left), each roll corresponding control device and a wire rope guide.
| Items | Parameters | Measurement Unit | |||||
| Model | JQHSB50×12 | JQHSBD-50×12 | JQHSB-50×12-DS | JQHSB-50×12-PS | |||
| Rated Working Pressure | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | MPa | ||
| Rated Pull Force | 50 | 50 | 50 | 50 | KN | ||
| Rated Cable Speed | 12 | 12 | 12 | 12 | m/min | ||
| Piston Air Motor | Model | TMH17 | TMH17 | TMH17 | TMH17 | / | |
| Rated Power | 17 | 17 | 17 | 17 | KW | ||
| Air Consumption | 247 | 247 | 247 | 247 | L/s | ||
| Drun | Dia. | 222 | 222 | 222 | 222 | mm | |
| Width | 335 | 335 | 335 | 335 | mm | ||
| Wheel Rim Dia. | 465 | 465 | 465 | 465 | mm | ||
| Cable Diameter | 15.875 | 15.875 | 15.875 | 15.875 | mm | ||
| Cable Storage | 120 | 120 | 120 | 120 | m | ||
| Air Inlet Diameter | 11/4 | 11/4 | 11/4 | 11/4 | in | ||
| Configuration(Length*Width*Height) | 1200*920*989 | 1200*920*989 | 1250*770*1016 | 1400*770*1016 | mm | ||
| Weight | 498 | 498 | 518 | 540 | kg | ||
| Brake model | Double-braking/Rotary Base Double-braking | Anti-low-temperature Double-braking | Air Cylinder Brake Type | Disc Brake Type | |||
Radial piston air motor. Provide positive power with precise control.
Compact structure. Keep out dirt and dust. All parts are sealed and complete lubricated in oil and grease.
High sensitive control valve provides flexible control with variable speed.
Easy operation, high safety and reliability, easy maintenance, stable performance
Base: common high base, common low base, flange base, trapezoid thread base, male thread base, union base, ear plate base.
Brake: single brake (hand brake), double brake (hand and foot brake, or hand brake and hydraulic brake), triple brake (hand brake, foot brake and hydraulic brake).
Accessories: clasp steel rope, hook, shackle, chain, air treatment triple piece etc.
