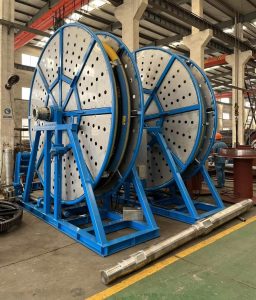

Hose winch belongs to the technical field of marine machinery. Hose includes: base, bracket, storage drum, power source for driving the rotation of the storage drum, and the oil bin connection of the flow-through parts and the discharge device, both sides of the discharge device can be rotated and bracket connection, the winch also includes a drive assembly for driving the rotation of the discharge device, the drive assembly is mounted on the bracket, and the drive end of the drive assembly is connected to the discharge device.
The parameters of the 2.5 ton hose winch are as follows：
Drum pull: 25KN(1st layer)
Holding load: 40KN(1st layer, static)
Nominal speed: 6m/min(1st layer)
Dia. Of pipe: 4”(ID102mm)
Capacity of pipe: 40m
Drum layers: 6 layers
Reducer: KF09-105.13
Electric motor: ABB, 4.8KW, 440V/60HZ
CCS Certificate: TZ22PPSOO841
For the products required by our customers, Brayden Machinery meets the needs of our customers on time, on demand and on request, which makes our customers around the world give great recognition to our products. The customer is very satisfied with our timely delivery of products and hopes to continue working with us on other marine projects in the future.
